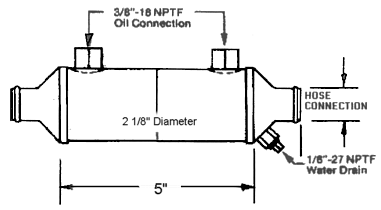

2” SINGLE OIL COOLERS 5” TUBE BUNDLE 8” LENGTH OVERALL
PRESSURE RATED 150 P.S.I.

 Home Page | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 Info/Ordering

 COPPER TUBES     CUPRO NICKEL TUBES
 PART#  HOSE CONNECTION    PART#  HOSE CONNECTION
2505C
2575C
2510C
2512C
2515C
2517C
2505TC
2575TC
2510TC
2512TC
 1/2”
3/4”
1”
1-1/4”
1-1/2”
1-3/4”
1/2”NPT
3/4”NPT
1” NPT
1-1/4”NPT 		  2505N
2575N
2510N
2512N
2515N
2517N
2505TN
2575TN
2510TN
2512TN 		1/2”
3/4”
1”
1-1/4”
1-1/2”
1-3/4”
1/2 NPT
3/4”NPT
1”NPT
1-1/4”NPT

* FOR ZINC ANODE ADD Z TO END OF PART#, LENGTH OVERALL WILL INCREASE 1 -1/4”
* FOR 1/2 NPTF OIL CONNECTIONS ADD -5 TO END OF PART#
* FOR SIZES NOT SHOWN OR FOR ANGLED WATER CONNECTIONS, PLEASE CONSULT FACTORY
